TLC-350・400
TLC SERIES

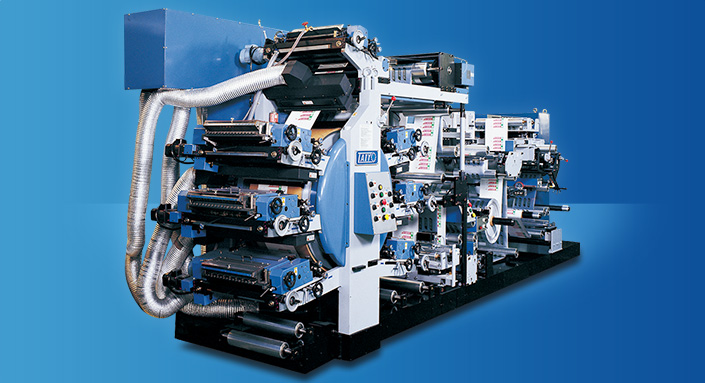

Center dram rotary label printing machine
More than 350 mm web width, we supply TLC-350 and TLC-400 model. High speed and non-stop run is possible with auto-splicer & auto-rewinder system.
Specification
[TLC-350 Spec.]
General Spec.
Max. web width:350mm
Max. printing width:340mm
Max. unwind diameter:φ800mm
Max. rewind diameter:φ800mm
Max. waste rewind diameter:φ800mm
Print
Print repeat:203.2mm〜457.2mm
（8"〜18"）
Gear increment:3.175mm（1/8"）
Rotary die cut
Width of die cut:336mm
Repeat of die cut:203.2mm〜457.2mm（8"〜18"）
Flat bed die cut
Width of die cut:350mm
Depth of die cut:200mm
Repeat of die cut:82.55mm〜206.38mm
（3-1/4"〜8-1/8"）
Gear increment:1.59mm（1/16"）
Max. Speed
Rotary die cut:120m/min.
Flat bed die cut:60m/min.（6"feeding）
[TLC-400 Spec.]
General Spec.
Max. web width:400mm
Max. printing width:390mm
Max. unwind diameter:φ800mm
Max. rewind diameter:φ800mm
Max. waste rewind diameter:φ800mm
Print
Print repeat:203.2mm〜457.2mm
（8"〜18"）
Gear increment:3.175mm（1/8"）
Rotary die cut
Width of die cut:386mm
Print repeat:228.6mm〜457.2mm（9"〜18"）
Flat bed die cut
Width of die cut:400mm
Depth of die cut:200mm
Repeat of die cut:82.55mm〜206.38mm
（3-1/4"〜8-1/8"）
Gear increment:1.59mm（1/16"）
Max. speed
Rotary die cut:120m/min.
Flat bed die cut:60m/min.（6"feeding）
Letterpress printing unit
Detachable construction of ink fountain is easy for ink roller washing. ※For TLC-250, only ink duct roller remains on print-ing unit.
Flat Bed Die Cut Unit
Taiyo designed high accurate flat bed die cut system. Its unique construction, cutting blade is positioned in lower and easy for operation.
Rotary Die Cut Unit
■TLC-170:Die cut cylinder can be out from the side. It is safety and easy handling for the operator.
■TLC-250/TLC-350/TLC-400:Maximum 3 rotary die cut units can be equipped. (TLC-170 is 1 unit). Side out of cylinder and crane are available as option items.
