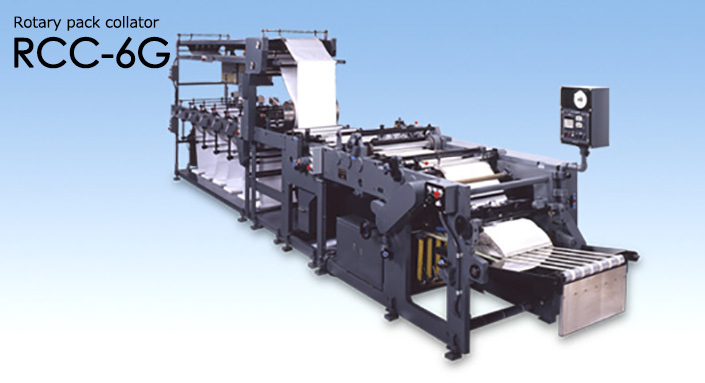

RCC-6G
RCC
Rotary pack collator
RCC is prepared for collating up to 6 folded continuous forms by crimping and/or gluing through the marginal punching holes.
RCC is prepared for collating up to 6 folded continuous forms by crimping and/or gluing through the marginal punching holes. File punch and numbering casettes are also available.
Features
●Collating speed and its tolerance are very high with rotary transport.
●Easy operation and maintenance free.
Specification
Standard Specification
Parts number : 6 Parts in Zigzag Folding
Max. Paper width:18”
Process Unit
Max. Process Unit:17-1/2”
Folding Depth:6”〜18”
（CD type:5”〜15”）
Max. Speed
Crimping:100m/min.
Line Gluing:70m/min.
Point Gluing:80m/min.
Power
Main Motor:2.2kW
（Invertor Motor）
Size
Length:7,300mm
Width:990mm
Height:1,050
Option
Electrical control gluing system
Stack type transport for drying
Microwave Dryer
File punch unit (compatible with TOF)
Number imprint unit (compatible with TOF)
Small depth folder unit for journal
For other devices, please consult to Taiyo.
