TOF-P-400 PRESTO

TOF SERIES

Offset form rotary printing press

Create high grade print with combination of valued processing and high quality printing system with PRESTO.

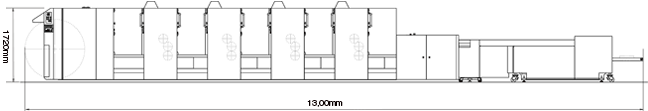

Specification

Magnify

Standard Specifications
Max. paper width :520.7mm
Max. printing width :508mm
Max. unwind roll dia.:φ1,270mm
Print
Printing circumference :609.6mm（24"）Fixed
Method of drive system
AC servo motor
（shaft-less drive）
Max. printing speed
at rewinding:360m/min.
at sheet cutting:300m/min.
※Max. printing speed is depending on conditions.
Preset function and repeat job function
Auto wash up system for ink rubber roller
UV Dryer 15Kw
High speed sheet cutting unit（with sheet pile delivery）

Option

  • Ink keys control device

  • Inkfountain auto wash up device

  • Blanket auto wash up device

  • Semi-automatic plate setting device

  • TV video inspection device

  • Impression preset device

  • For other devices, please consult to Taiyo.

  •
