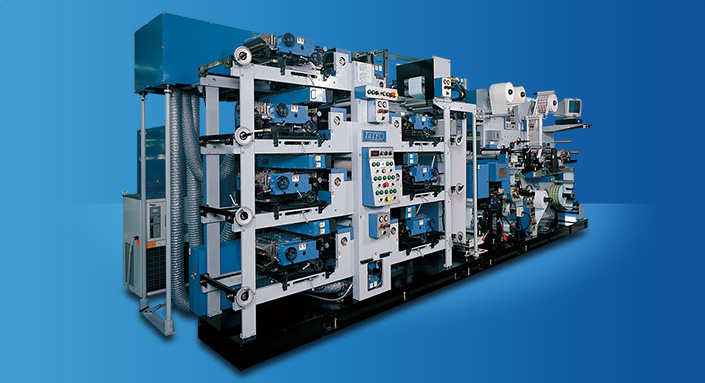

Compact label printing press

TLS is stack type compact press for limited floor space. Maximum 7 colors can be mounted on TLS and 4 colors on TLS-S. Flexo varnish print unit, cold stamping unit, hot stamping unit, laminating unit, sheeter and many options are available.

Maximum 6+1 colors can be mounted compact press. TLS is stack type compact combination press.Printing cassette (letterpress, flexographic androtary silk screen) can be changed by dolly. Compact machine minimized paper length and achieved stable tension for less waste.



General Spec.
Max. web width:250mm
Max. printing width:240mm
Max. unwind diameter:φ800mm
Max. rewind diameter:φ800mm
Max. waste rewind dia:φ800mm
Print repeat:193.675mm〜457.2mm
Gear increment:3.175mm(1/8")
Rotary die cut
Width of die cut:236mm
Repeat of die cut:193.675mm〜457.2mm
Flat bed die cut
Width of die cut:254mm
Depth of die cut:200mm
Repeat of die cut:82.55mm〜206.38mm
Gear increment:1.59mm(1/16")
Max. speed
Rotary die cut:120m/min.
Flat bed die cut:80m/min.(8"feeding)

Stocking Table for letterpress print unit

Stocking table for wash up inks and inking with independent motor. Reduce press down time with plate mounting and inking off press, while running another job.

Dolly for printing cassette

Quick and easy change of printing cassette with power lifter*.

New Rotary Die Cut Unit

New rotary die cut unit is easy for operation and handling. Die cutting cylinder can slide out to the operator side for quick change.
