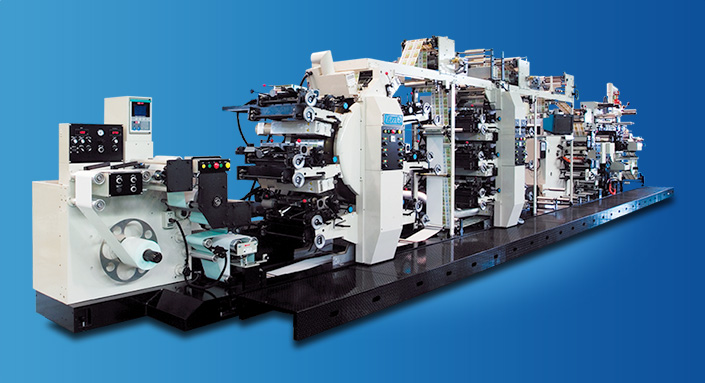

Center dram model flexo rotary printing press

Taiyo presents high quality steel center impression drum flexo press.

Using latest flexo technology and having inside cooling system for steel center impression drum brings very stable color register and tension control for films. Many unique functions are included for easy and simple operation.



General Spec.
Max. web width :250mm
Max. printing width :240mm
Max. unwind diameter :φ800mm
Max. rewind diameter :φ800mm
Max. waste rewind dia. :φ800mm
Print repeat :193.675mm〜457.2mm
Gear increment :3.175mm(1/8")
Rotary Die Cut
Width of die cut:236mm
Repeat of die cut :193.675mm〜457.2mm
Flat Bed Die Cut
Width of die cut :254mm
Depth of die cut :200mm
Repeat of die cut:82.55mm〜206.38mm
Gear increment :1.59mm(1/16")
Max. speed
Rotary die cut :120m/min.
Flat bed die cut :80m/min.(8"feeding)

Processing Unit

Rotary die cut unit, Laminating unit and other many options can be equipped. Touch control panel is equipped for easy operation.

Plate cylinder pull-out device

Plate cylinder can be pulled out for quick change.
