TLC-170
CID type		 TLC-250
CID type		 TLC-350, TLC-400
CID type		 option
Hot stamp



TLC-170
Taiyo Commercial Label Printing Press

 Features
Taiyo TLC-170 is a 4-color letterpress designed with 170 mm (6-2/3") paper width. This 16-foot compact press is designed with the same efficiency as the Taiyo TLC-250. For progressive printing companies who are ready to upgrade to a rotary label press, this is an excellent quality press for today's market.

Specifications
>
Max. web width : 170 mm (6-2/3")
Max. printing width : 160 mm (6-1/3")
Max. printing repeat length : 330.2 mm (13")
Min. printing repeat length : 165.1 mm (6-1/2")
Max. flat bed die cut width : 160 mm (6-1/3")
Min. flat bed die cut width : 82.55 mm (3-1/3")
Max. rotary die cut width : 160 mm
Max. rotary die cut repeat length : 330.2 mm (13")
Min. rotary die cut repeat length : 165.1 mm (6-1/2")
Gearing : 1/8" circular pitch
Max. printing speed Rotary : 100 m/min.
Flat bed : 66 m/min. (6" feeding)
Flat bed : 30 m/min. (3" feeding)
(400 stroke/min.)


go to TOP



TLC-250
Taiyo Commercial Label Printing Press

Features
Taiyo label press model TLC-250 performs highest quality letterpress printing at the speed of upt to 80 m/min (260 fpm) with flat bed die cut and 120 m/min (400 fpm) with rotary die cut unit.
Central drum impression cylinder at printing station accommodates six letterpress printing units.
Additional stack type printing statin can provide printing units of up to threee printing units.
The use of central drum statin and stack statin enables the press to have up to 9 - 12 colors.
Model TLC press can furnish such optional units as laminating, sheeting and hot-stamping, making the press widely versatile for the productino of a wide range of label industry demands.

Specifications
Max. paper width : 260 mm
Max. printing width : 250 mm
Max. paper roll dia. : 800 mm
Max. line speed : 120 meter per minute
Print repeat : 7-5/8" - 18"
Gear increment : 1/8"
Die cutting : 2 cylinder rotary die cut (7-5/8" - 18")
Option : Laminate, Sheet cut, Flat Bed Die Cut and more

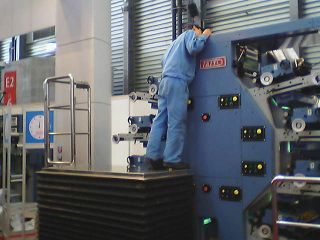

New TLC-250-8C (8 colors in CID type)


go to TOP






Features

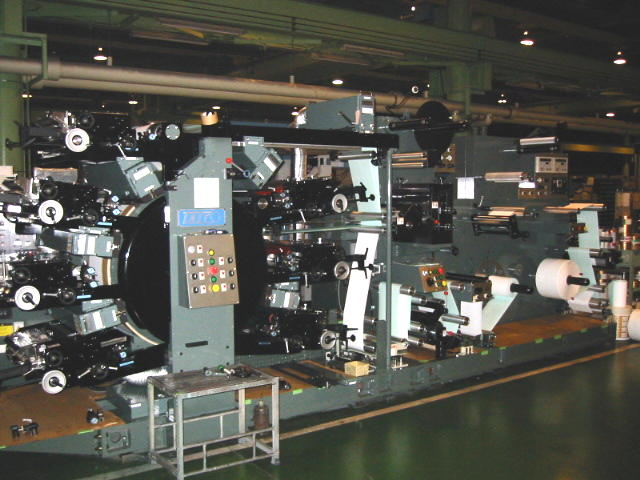

More than 350 mm paper width, we supply TLC-350 and TLC-400 model.
High speed and non-stop run is possible with auto-splicer and auto-rewinder system.

Specifications
Max. paper width : 350mm (400 mm)
Max. printing width : 340mm (390 mm)
Max. paper roll dia. : 800 mm
Max. line speed : 120 meter per minute
Print repeat : 8" - 18"
Gear increment : 1/8"
Die cutting : 2 cylinder rotary die cut (9" - 18")
Option : Laminate, Sheet cut and more
