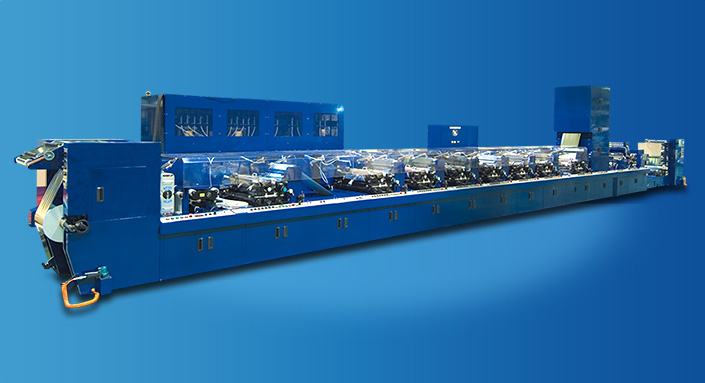

Flexo rotary printing press

Non-stop high speed flexo press for 500mm web width Many option items are available same as TLF-250.


General Spec.
Max. web width:500mm
Max. printing width:490mm
Max. unwind diameter:φ1,000mm
Max. rewind diameter:φ1,000mm
Max. waste rewind dia:φ800mm
Print repeat:254mm〜457.2mm(10"〜18")
Gear increment:3.175mm(1/8")
Rotary die cut
Width of die cut:486mm
Repeat of die cut:228.6mm〜457.2mm(9"〜18")
Max. speed
Rotary die cut:120m/min.

TLF Feature

Flexo printing unit with new chamber system

TLF Feature

Easy for operator

TLF Feature

Process section (rotary die cut, sheet cut, others)
