TLF-250・330

TLF SERIES

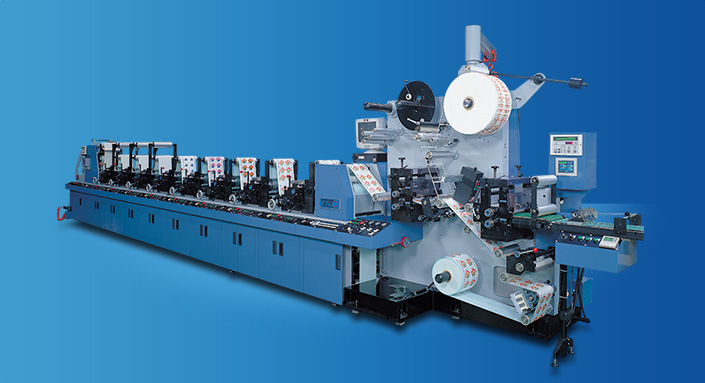

Flexo rotary printing press

Today, Flexographic achieves high quality print with latest UV inks and plate processing technology such as CTP system and digital technique

World class high performance flexo press TLF can process (rotary die cutting, creasing and sheeting) for adhesive labels and foldingcarton with less waste by all in one pass construction. For film materials, Taiyo supplies suitable tension control system (option). Press designed tool-less operation for fast changing job, this reduces lead time of press operator and effective for the short run jobs.

Specification

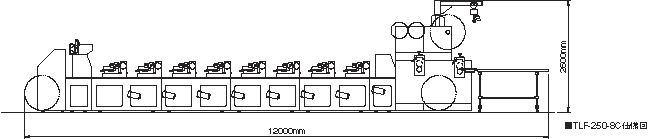

Magnify

[TLF-250 Spec.]

General Spec.
Max. web width:250mm
Max. printing width:240mm
Max. unwind diameter:φ800mm
Max. rewind diameter:φ800mm
Max. waste rewind dia. :φ800mm
Print
Print repeat:193.675mm〜457.2mm
     (7-5/8"〜18")
Gear increment:3.175mm(1/8")
Rotary die cut
Width of die cut:236mm
Repeat of die cut:193.675mm〜457.2mm
   (7-5/8"〜18")
Flat bed die cut
Width of die cut:254mm
Depth of die cut:200mm
Repeat of die cut:82.55mm〜206.38mm
     (3-1/4"〜8-1/8")
Gear increment:1.59mm(1/16")
Max. speed
Rotary die cut:120m/min.
Flat bed die cut:80m/min.(8"feeding)

[TLF-330 Spec..]

General Spec.
Max. web width:330mm
Max. printing width:320mm
Max. unwind diameter:φ800mm
Max. rewind diameter:φ800mm
Max. waste rewind dia:φ800mm
Print
Print repeat:203.2mm〜457.2mm(8"〜18")
Gear increment:3.175mm(1/8")
Rotary die cut
Width of die cut:316mm
Repeat of die cut:203.2mm〜457.2mm(8"〜18")
Flat bed die cut
Width of die cut:330mm
Depth of die cut:200mm
Repeat of die cut:82.55mm〜206.38mm
     (3-1/4"〜8-1/8")
Gear increment:1.59mm(1/16")
Max. speed
Rotary die cut:120m/min.
Flat bed die cut:60m/min.(6"feeding)

TLF Feature

Flexo printing unit with new chamber system

TLF Feature

Easy for operator

TLF Feature

Process section (rotary die cut, sheet cut, others)
