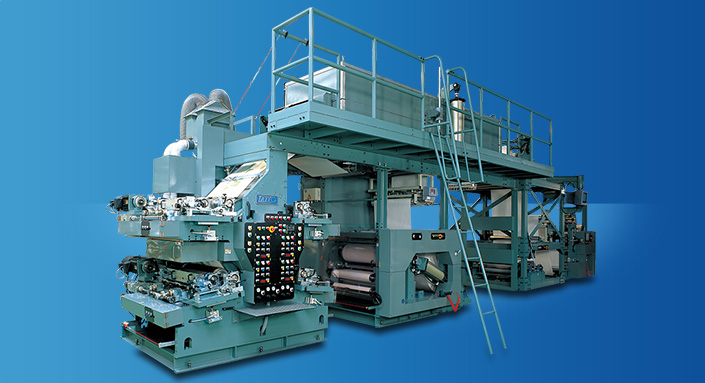

Center dram model flexo rotary printing press

Maximum 800 mm web width C.I.D. Flexo press. Latest gear-less system is available (option). Many option items can be fitted same as TCF-250 & TCF-450.


General Spec.
Max. web width :800mm
Max. printing width:780mm
Max. unwind diameter :φ800-1,500mm
Max. rewind diameter :φ800-1,500mm
Max. waste rewind dia. :φ800mm
Print repeat :381mm〜762mm
Gear increment :3.175mm(1/8")
Max. speed:200m/min.

Processing Unit

Rotary die cut unit, Laminating unit and other many options can be equipped. Touch control panel is equipped for easy operation.

Plate cylinder pull-out device

Plate cylinder can be pulled out for quick change.
